Neil
I had the same problem recently.

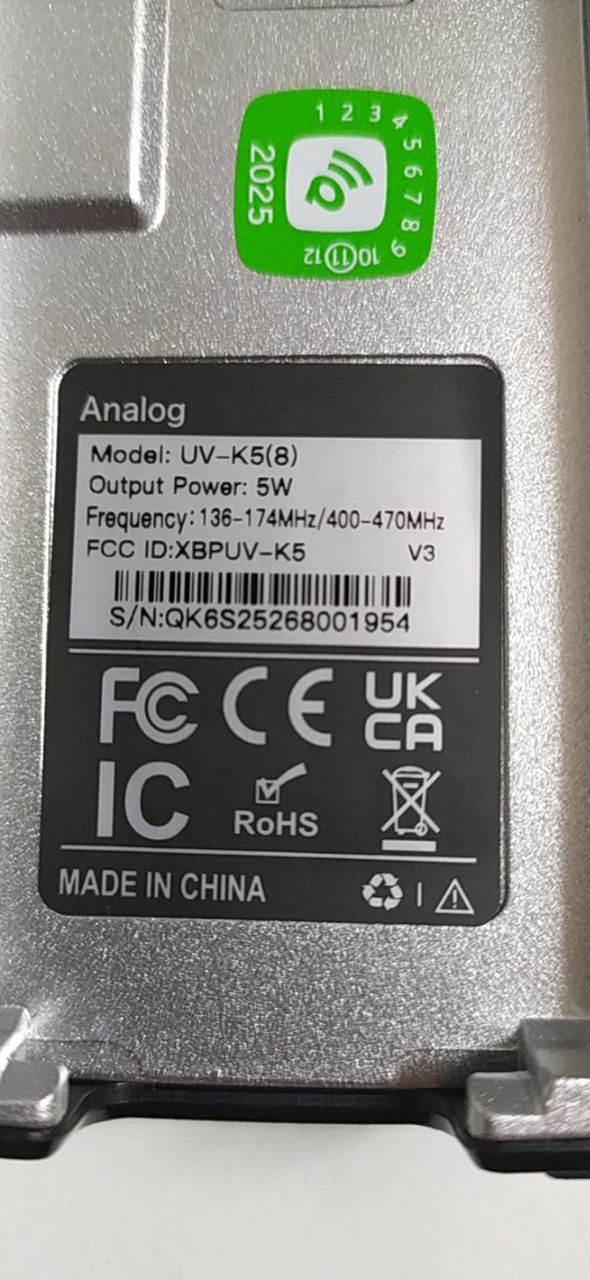

You probably have a newer radio with another CPU, see behind the battery if there is small “V2”, next to the UV-K5(8) on the label.
All the older firmwares don’t work on that CPU.
I used a firmware by F4WHN ( a derivative of the egzumer firmware), ported to the V2 model , and that works great.
I used the “Bandscope” variant, which lacks the FM broadcast band.
The “Broadcast” variant then lacks the interesting spectrum display, so you have to make a choice.
I don’t know if and when the IJV firmware will become available for V2. If someone knows more, please report here.
Many thanks for the replies. I don’t believe that the flashing process was interrupted - I’ve also tried it quite a few times. It’s possible the binaries were corrupted, but again I’ve downloaded the software several times and tried each one with no change. I think you are correct Luc about the hardware on my K5(8) being incompatible with the older fw releases. I was planning on reverting back to the factory fw to check this, but unfortunately when I go to the Quansheng web site downloads section there’s nothing there - perhaps Quansheng have got fed up with people loading their radios with fw variants. I was only really interested in getting a small cw capable radio to carry with me on my bike when doing cross country ‘roughstuff’ riding. does the F4HWN fw enable CW?
Otherwise, does anyone have the original factory K5(8) FW squirrelled away somewhere that I could try?
OK, another happier update. I found a web address that took me to the specific Quansheng download page 福建泉盛电子有限公司 - the 3268 is the specific bit for the K5. -the plain ‘downloads’ is a blank page. On there I found FW for v1, v2 and v3. I started with v3 and the flashing software rejected this as being too big for a fw load. The first v2 fw failed (plain v2 filename), but the second one called ‘k5_py030_v1.02.01_publish.bin’ worked and after reloading the cal and config files (I’d saved them as instructed) the radio appears to be working as it was. It displays ‘v1.2’ on boot up. Now my faith in the flashing process and the tools I have is restored I’ve ordered an older (plain K5) radio to see if I can get the IJV FW with CW capability onto that one. I guess I’ve got a spare standard Quansheng too now for further experimenting.
I put the detail here in case it is of any use to someone else who gets the same problem.
I’ve been enjoying CW on my Quansheng. Indeed, i now have 3 of them.
I thing i am unsure of, related to flashing new firmware…how critical is it to save and reload the calibration file onto the Quansheng. Does flashing firmware overwrite the calibration parameters?
https://qsfj.com/support/downloads/3268 is the address - it seems to change to the Chinese address when I post it here. I had to wait for someone else to post before putting this up .
I’ve noticed one or two things on Quashing (IJV fw) now I’ve been using it, which may be solvable by changing some parameters or may be permanent:
There’s a funny sort of keying hesitancy, where after keying some characters, putting in a word space seems to stop the radio responding to the next keying input. e.g after ‘de’. the radio always refuses to take my first dash of ‘M’ in my callsign, unless I truncate the gap between e and the M.
There’s an annoying squelch tail at the end of some characters being received if there’s a gap in sending.
The DSB modulation sounds pretty horrible when received on SSB on my FT817.
I have similar issue with IJV firmware v2.9. The first touch (elemet or pulse) of every word is lost. For example, when I try to send my callsign instead send ‘EA4HZK’ I send ‘A4HZK’, if I want to send ‘SALVA’ it sends ‘IALVA’
I don’t know how to solve it.
Hello everyone.
I received a Quansheng UV-K5 (8) v3.
I tried installing the IJV 2.9R5 firmware so I could work in CW mode. After installing it, the Quansheng stopped working. I managed to restore it with the original firmware. I’ve tried this several times, but the same thing always happens. Is it possible that the Quansheng UV-K5 (8) v3 isn’t compatible with the IJV firmware?
@EA5M
I don’t know how to be sure you get an older version, maybe contact the seller before buying?
If you hover the mouse over the name of the seller on Ali Express, you can click on “Business Info” and then you wil find an email address for the seller.
e.g.

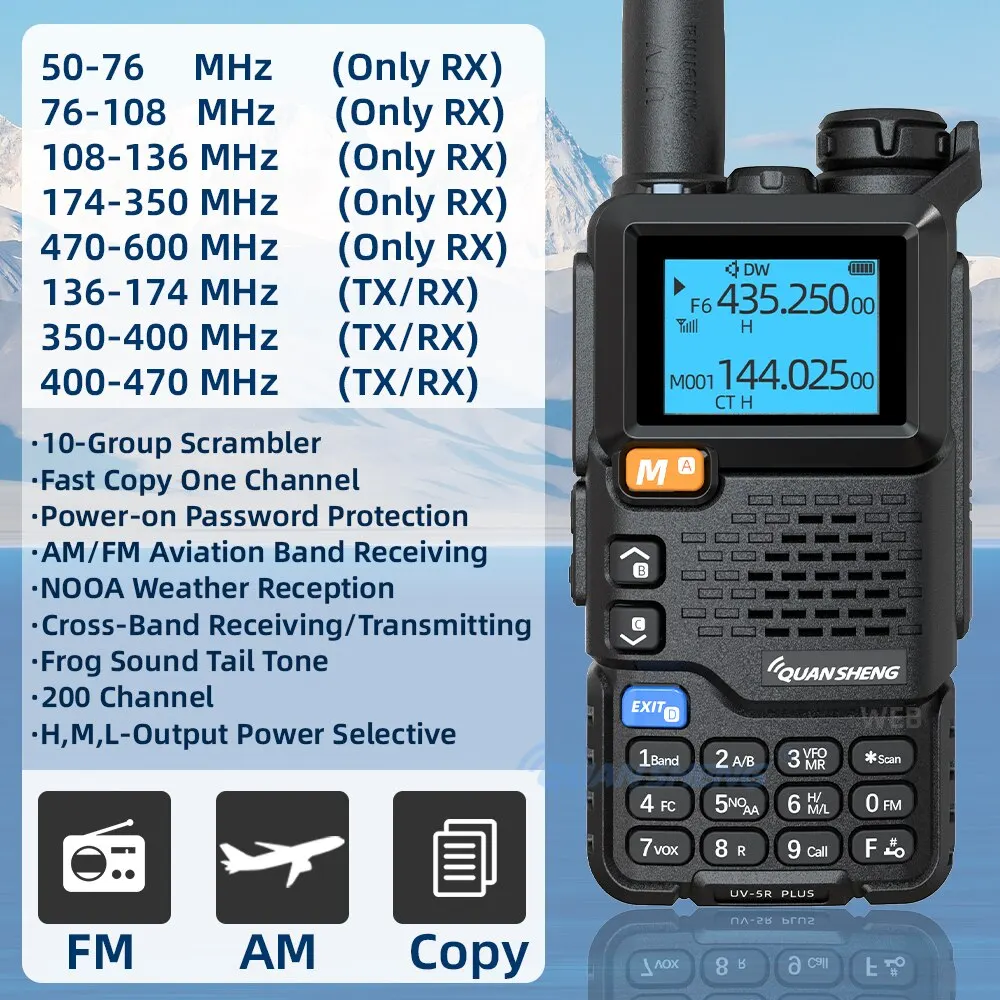

I have the IJV firmware in a UV-5R Plus , like this one
It has a bigger battery, but not the USB-C charging port. The rest is identical to the UV-K5.
The seller is Quansheng Global Store, and their email address is quanshengzhying@163.com
(not sure if that is a valid email address, hi).
I found a new video by F4HWN about the V3 rigs, it seems they are still working on it.
NR7Y has said he will release a version of his firmware that works on V2/V3 once he is done with the V1. NR7Y firmware is MUCH better than IJV for CW. For DSB (what passes for SSB on the Sheng), NR7Y firmware works just as well in my testing.
NR7Y firmware is also open source, so others can contribute. For whatever reason, IJV has decided not to make his stuff open source which is too bad.
.
Thanks!
