Working DX with a piece of aluminium foil (HB/TI-129)

The day had already started with an unexpected issue: the road through Centovalli, from where the summit that I initially had in mind is reached, was closed due to a forest fire (HB/TI has not received any precipitation worth mentioning for over 100 days in a row now). So I turned around and decided to give Pizzo Peloso (HB/TI-129) in nearby Onsernone valley a try. Instead of the normal, relatively easy route (1400 m ascent), I opted for the WNW ridge, which is shorter, but a bit more difficult. The name of the summit can be translated as “hairy” or “furry peak” – the ascent wasn’t all that hairy, but copious amounts of slippery leaf litter in the forest and steep, dry, long old grass higher up made it more challenging.

Arriving at the summit, I was disappointed to find that while I had packed my KX2 and a mast, the antenna wire was missing. I must have left it at home while packing my new backpack. Soon I accepted the fact that this would be a hike to a new summit (for me) without an activation. To console myself, I ate my sandwich, which I had wrapped in aluminium foil. That was something conductive, but it had the wrong shape! The only other conductive longish thing that I found in my backpack was the cable of my earphones. Could I get 4 QSOs with these?

At first I contemplated ripping up the earphone cable to make two pieces, but it was tightly “woven” and I wasn’t sure whether I could extract two strands – and also I didn’t really want to ruin it. So I decided to try fashioning the aluminium foil into a radiator first. I succeeded at making an approx. 2 m long piece, but had to be very careful not to rip it. I then connected it to the KX2 via the BNC/banana socket adapter that I luckily had brought, and attached the earphone cable as a counterpoise:

Scanning the bands, I mostly heard nothing, but on 17m there were some signals, and incidentally this was the only band where the KX2 ATU was able to find a reasonable match for my contraption. So I put out a spot, called CQ, and almost immediately @EA7GV and @EA5K answered with loud signals and gave me 529 reports. Wow – maybe I could get my activation after all! The third caller was @HB9BQU/P who got his SOTA complete, and immediately afterwards @K4DY with his “big ears” called from North Carolina and also gave me a 529 report. Activation successful, and with a DX too!

Then things went quiet; I tried 17m SSB, but only got one local groundwave QSO with @HB9EFJ in almost an hour. Back on 17m CW, I worked @RN1CW, and then @WX1S from New Hampshire (519 received), who even spotted me on my new clear frequency (thanks!). In the last 15 minutes, @EA5JN called in, and then as the grand finale, @VE3EXY from Ontario (559 received).

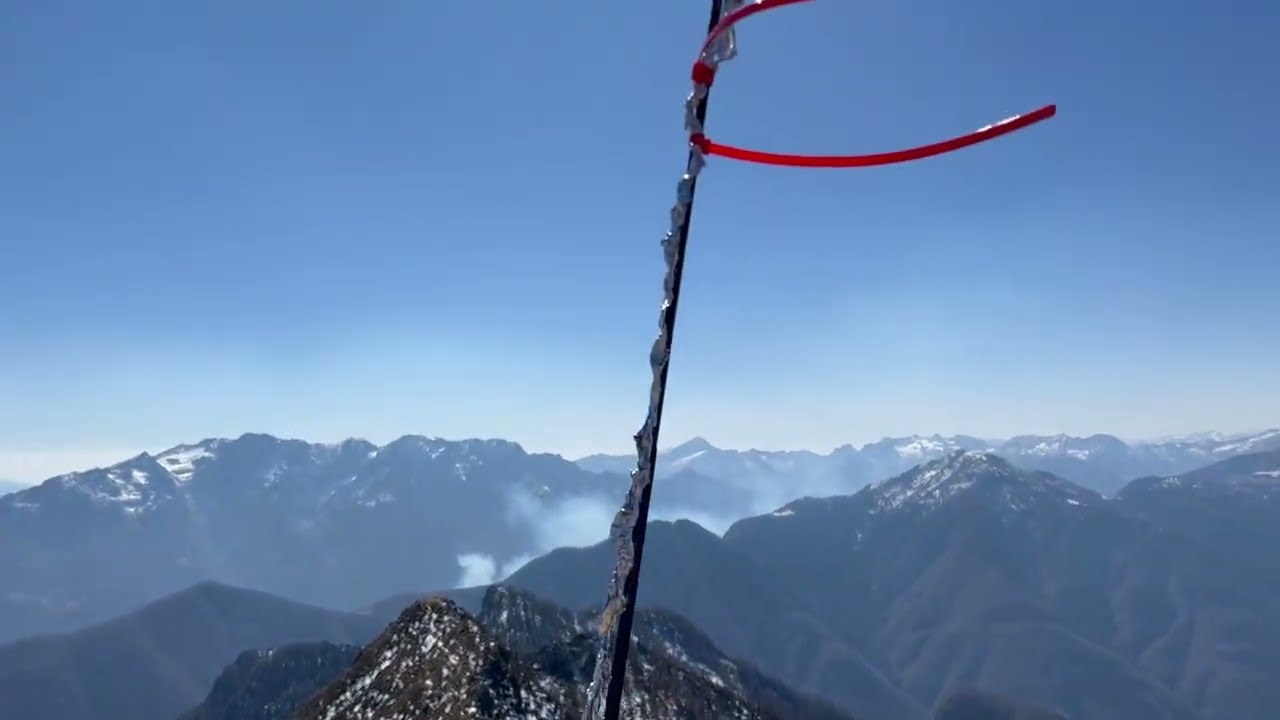

Here’s a short video showing the setup and the signal received from my last caller:

The RBN spots weren’t so bad either:

It was a fun experience and really shows the magic of amateur radio and HF – but I’ll make sure to pack that antenna wire next time! :joy:

Thanks to all those who chased me!

73, Manuel HB9DQM

52 Likes

Genius!
I would have ripped the headphones up into the World’s smallest dipole. :wink: (My headphones are never used and cost me £1.)

My kx2 was receiving 20m through 30cm of coax and a dummy load the other evening at home. They really are great radios!

2 Likes

Awesome Manuel! Well done!
Bravo!
73 Fabio

1 Like

Manuel,

In order for the replica to be successful right away, it would be interesting to know whether the aluminum foil was highly polished on both sides, or just one side is highly polished and the other has a matt finish? :thinking::joy:

You have to have ideas, that helps more than so many myths. Well done, thanks for sharing.

73, Heinz

3 Likes

A little bit tongueless. Why do I bring always such a lot of wires on the summit?

73, Ludwig

2 Likes

Hi Manuel,
So what I would like to know is how did you fit your sandwich in the pack? That’s a lot of aluminum foil. All joking aside, very nice to catch you today.
73 fred

2 Likes

Brilliant! :slight_smile:

1 Like

Wow wow wow!!!
Excelent idea, I’m very glad you didn’t gave up!
Perhaps we should always carry a foil wrapped in the rucksack, just in case…

Thanks for sharing, VY 73 Ignacio

1 Like

Brilliant Manual, well done with the make shift antenna. :+1:

Cheers to you :beers:

Geoff vk3sq

1 Like

Hi Manuel,

Great job :muscle:

Now you have well deserved title “master of disaster”.

73, Jarek

2 Likes

Hi Manuel,

Very great job.
And from now on, your nickname will be Manuel Mc Gyver :rofl: :rofl:

73’s

Laurent

5 Likes

Fine! Manuel
I’ll put that idea in my memory, in case of need!
Great idea.
Gerald

1 Like

Brilliant idea, Manuel :+1:
Lesson learned: Don’t wrap your sandwich in ordinary paper :wink:
Thanks for sharing!

73, Roman

2 Likes

You need to do another activation with the same foil antenna. Then we will all hear Murphy shouting “Foiled Again!”

5 Likes

Simply brilliant, Manuel, Chapeau!
I see similarities to MacGyver, always finding a solution for hopeless situations. :wink: Just to share a thought which came to my mind when I read your report and just in case you would like to develop the technology furher: a normal household aluminium foil coil is 25 or 50 m long and about 30 cm wide. If you cut this in slices with a band saw you should end up with handy little coils like paper streamers…
Sorry, could not resist. :rofl:
Thanks for sharing, all the best. 73 Peter, DO4TE

2 Likes

Hi to all,
Elecraft great ATU, but Manu great McGiver :rofl: :rofl: :rofl:. Here a cushcraft D5W.
thanks for the contacts.
73 José

1 Like

Thanks for all the nice and funny replies! :blush:

It was household aluminium foil, one side polished, the other matt. Tangan N°42 to be precise :wink:
Seems like both sides readily make contact without scratching the surface, according to my ohmmeter.

:joy: Actually I had two small sandwiches, so the secret was in tearing up the two rectangular pieces in continuous spirals, without breaking them, and then joining them together.

73, Manuel

2 Likes

Good stuff Manuel,
Whole thread reminds me of the funny article by Tom, N6BT “Everything Works”.
He spent some time on the HF bands. using a 100-Watt light bulb in a pony cleat socket (look it up; you’ll recognize it) on top of a fence post. Link: https://www.okdxf.eu/files/everything_works.pdf

Best, Ken

1 Like

Ken,

Interesting story, thanks.
As we can see in N6BT’s contribution, not only “works” can be a very broad term, but also and above all “everything” …

73, Heinz

2 Likes

That’s what amateur radio is about.
You could have made a hat instead.

1 Like
