For a bit of a personal amusement I’ve been working on a RockMite transceiver casually over several weeks.

Though there are designs simpler than the RockMite, I was drawn to it because it strikes an ideal balance, delivering surprisingly excellent performance despite its simple, bare-bones circuitry.

My standard RockMite 20 puts out about 330mW from a 12v supply and, in it’s Altoids tin case, weighs 81grams. I wanted to try to cut down some of that weight and get rid of the need of the heavy battery providing the 12v.

I’ve used PP3 batteries in the past, for the LA1KHA challenge, but these weigh in at >30g just by themselves. The USB rechargeable lithium 9v batteries aren’t any better. I decided upon a 350mAh 2S lipo, weighing around 18grams.

I still wanted a useful >300mW output from the RockMite so I modified the circuit with a PA transformer and low pass filter inspired by the ‘P&E mod’ documentation from QRPme. With the mods in place, I’m seeing about 340mW output when powered by the 2S battery.

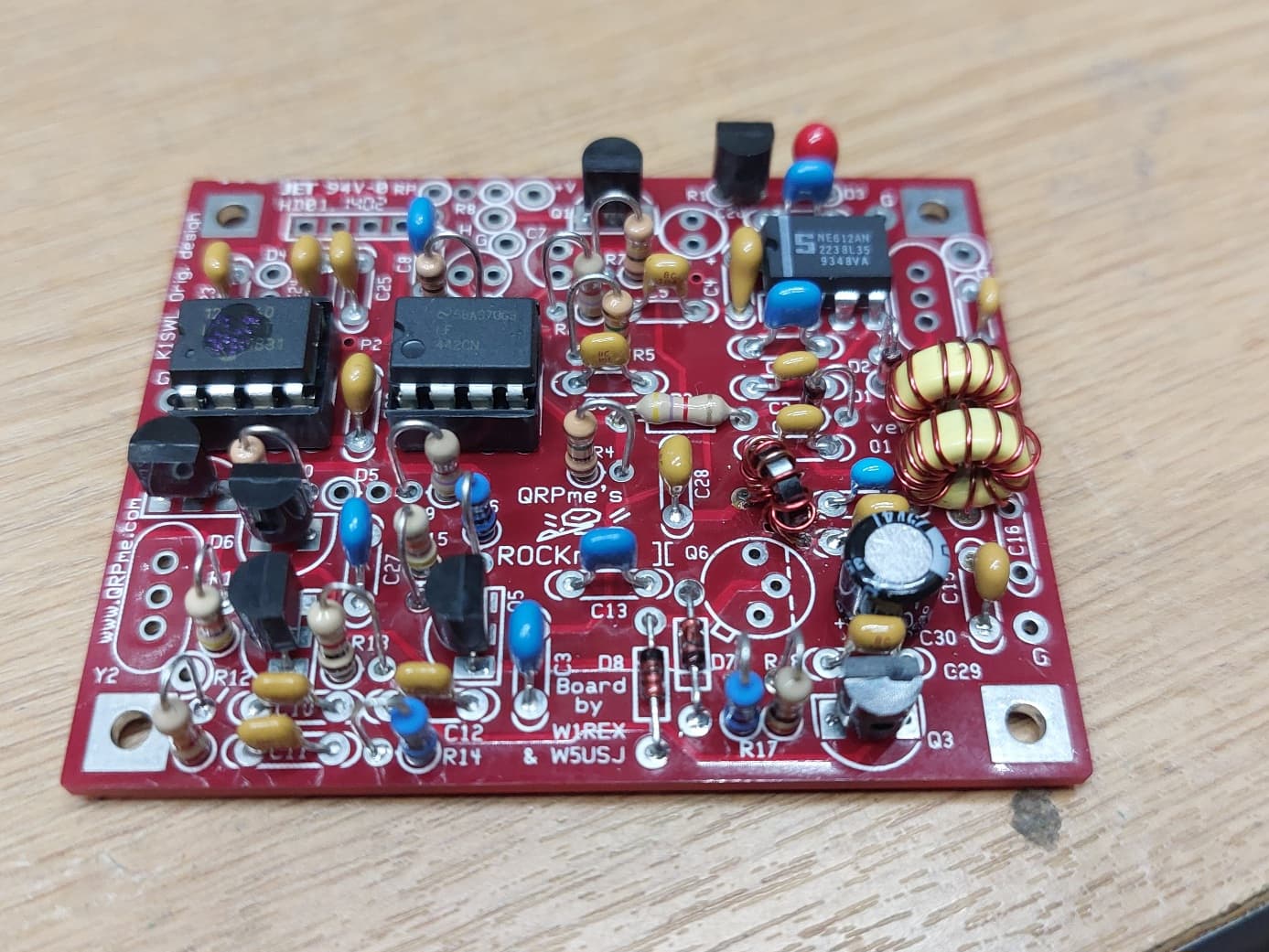

20250923_214929
20250923_2149291387×1041 177 KB

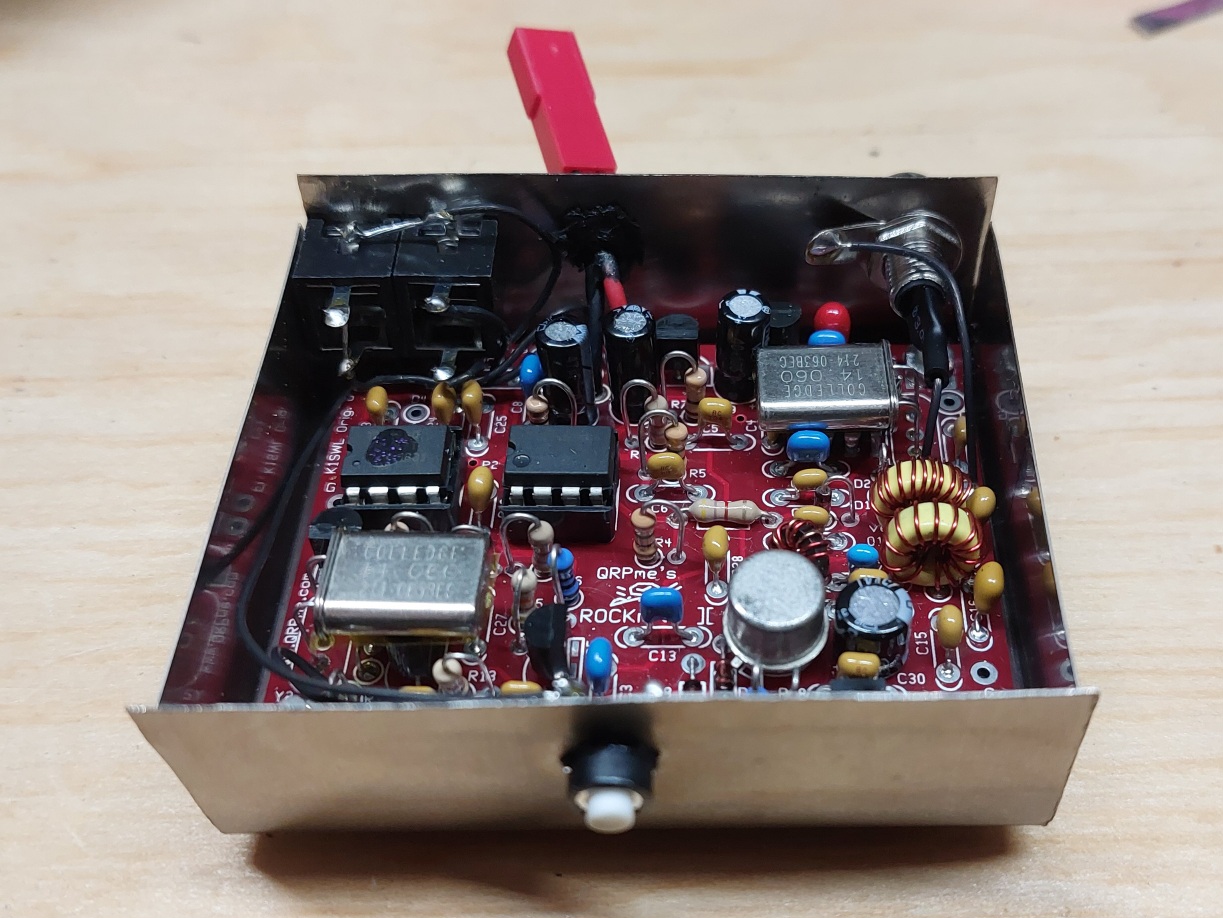

During build - tiny PA transformer on FT23-43 core.

To save weight I made a case from 0.3mm titanium sheet, this saved quite a few grams over using an Altoids tin.

20251015_211344
20251015_2113441223×918 295 KB

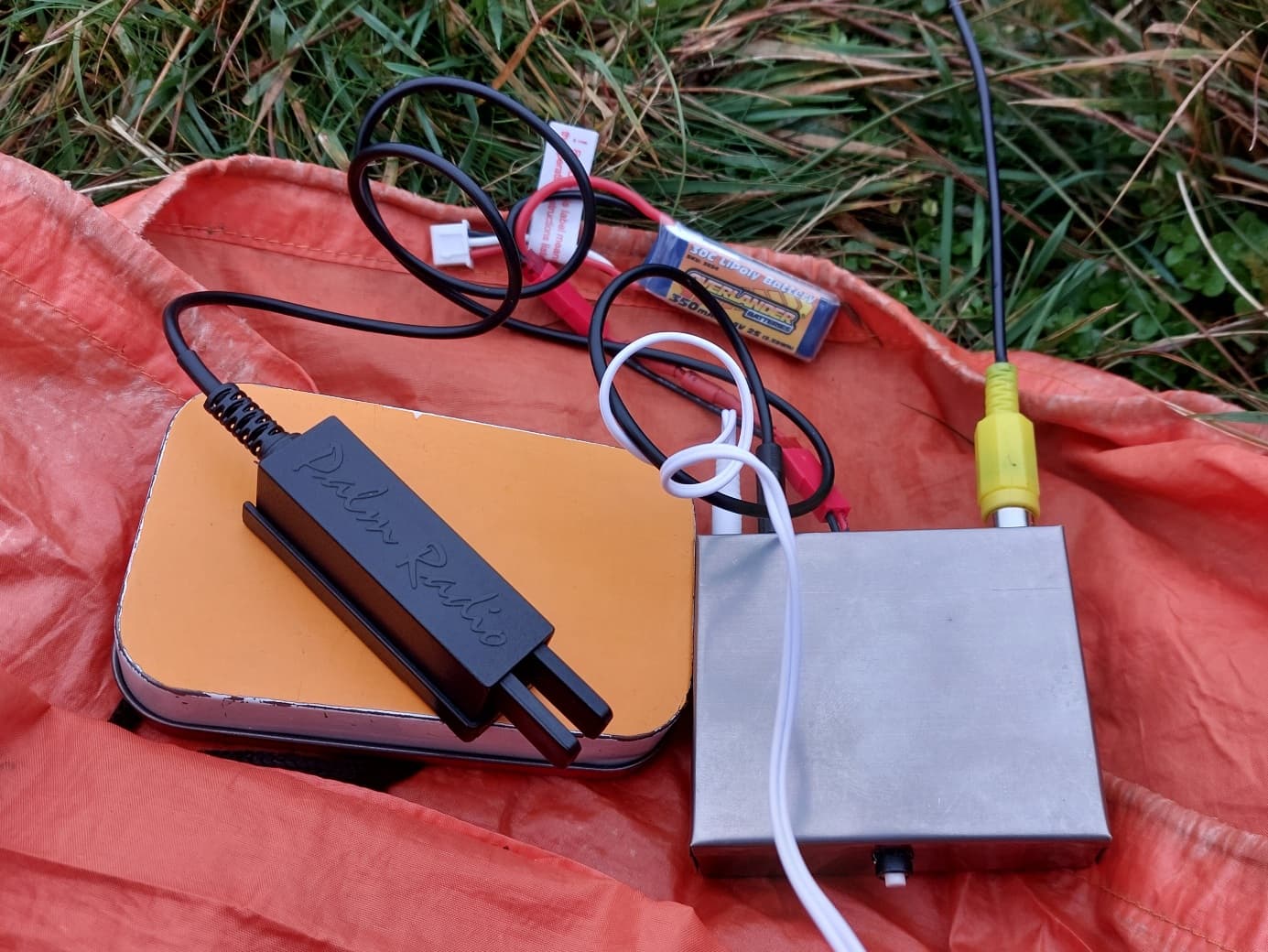

Case from pure titanium

20251023_152940
20251023_1529401920×1442 151 KB

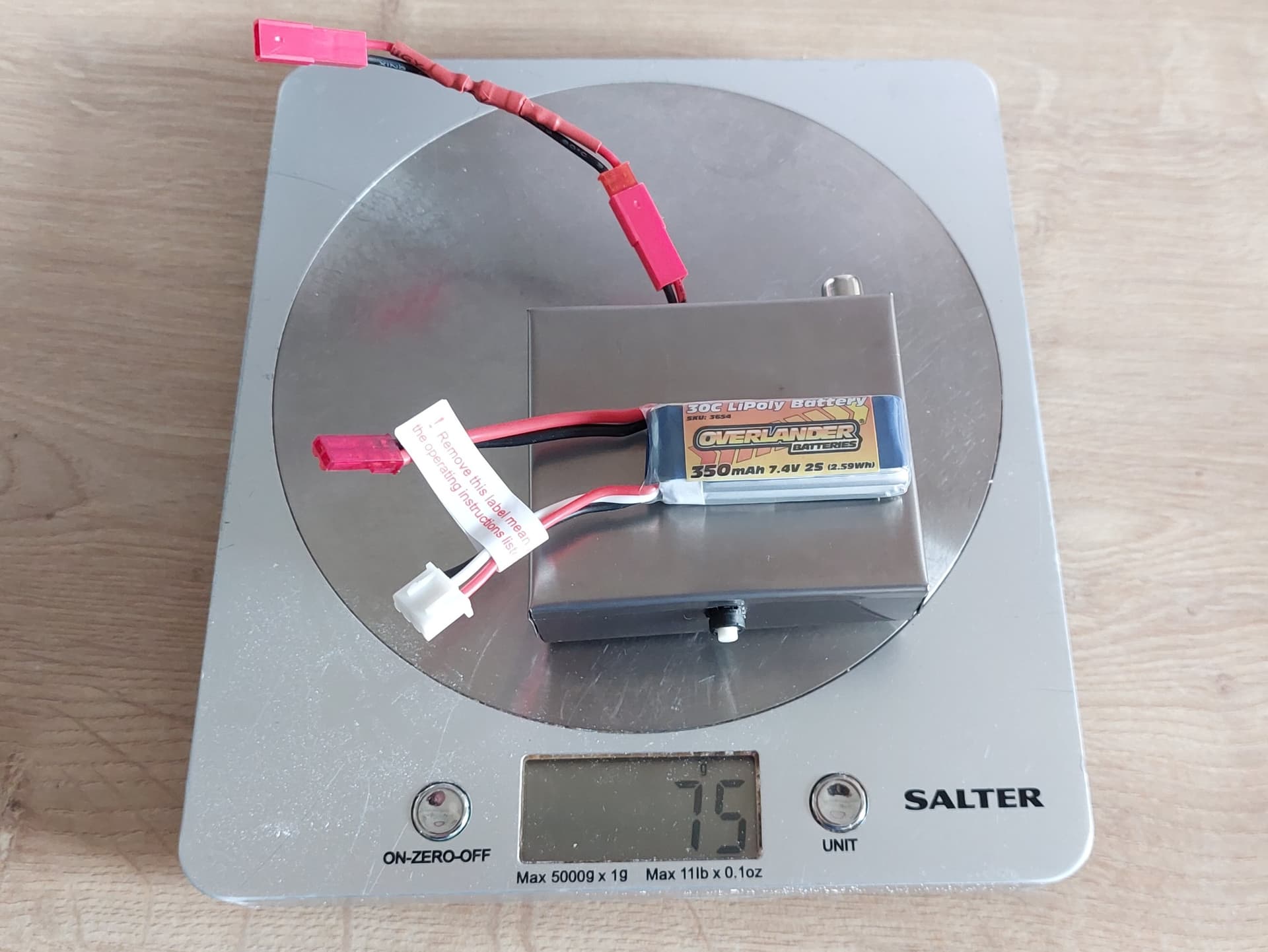

Even with the battery, the titanium RockMite weighs 6 grams less than the standard RockMite on it’s own (fuse weighs about 1g, optional?).

The radio seemed to work OK on the bench, but there’s only one way to know for sure if it worked and that was to put it on air. Firstly I needed a lightweight antenna. I decided to try an EFHW cut for 20m. At 300mW, I figured that I could get away with a small core for the transformer so I opted to use an FT37-43. The finished antenna weighs in at 54 grams.

20251023_152726
20251023_1527261013×1014 338 KB

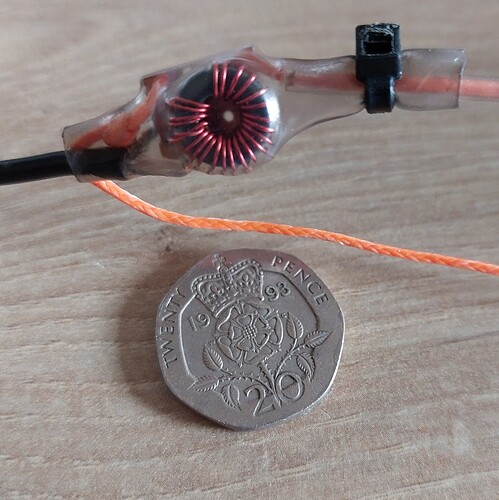

EFHW for 20m with FT37-43 core.

I took the untested rig and antenna combination to Whernside G/NP-004 today to give it a try. I was pretty amazed to be working pile-up style for about 15 minutes! I got 16 QSOs in the log. I hadn’t done Morse since August and I felt that I had landed in the deep end somewhat! I had a weird situation where I was mixing my Ys and Qs, not something that usually bothers me, I was having to think hard about it!

It was a very enjoyable activation despite the cold wind and mist.

20251023_132336
20251023_1323361385×1040 164 KB

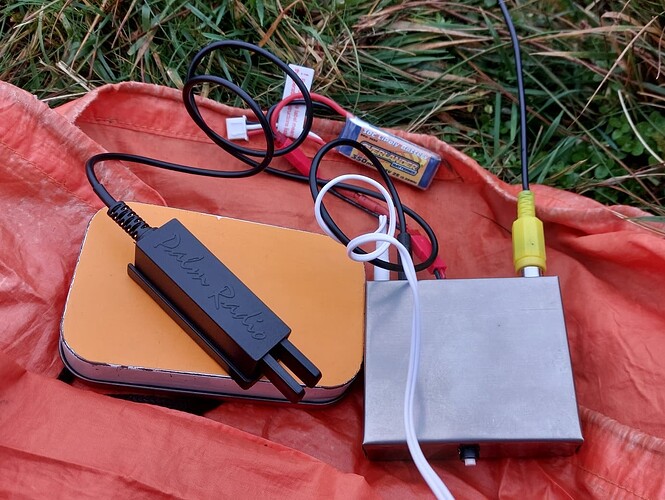

Pico paddle seems a bit big, I have a smaller, lighter keying solution in the works.

Thanks to all the chasers today, you made my day! It never ceases to amaze me just how far a bit of QRPp CW on HF will go.

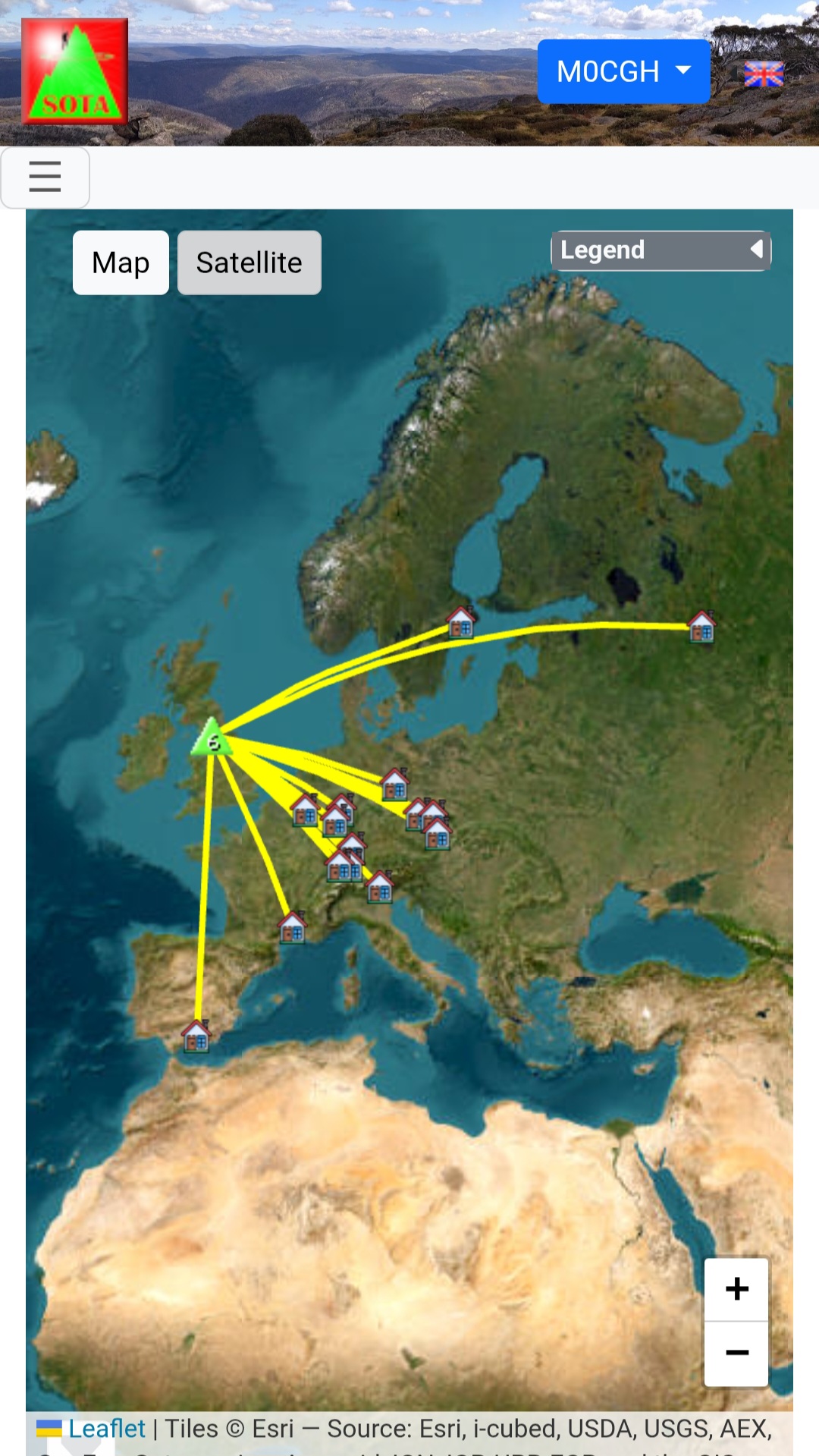

Screenshot_20251023_211011_Chrome
Screenshot_20251023_211011_Chrome1080×1919 415 KB

73, Colin

38 Likes
2

:rofl:

Gordon Bennett! If you make the key any smaller the only folks that will be able to use it are The Borrowers!

Also, I didn’t cop it was a battery at first. I thought it was one of those delicious Refreshers chews.

Great stuff! :+1:

2 Likes
3

Apparently chewing on a lipo is quite similar to eating refresher bars, they have the same fizz.

3 Likes
4

Yes, a truly fascinating QSO harvest, not least (or only?) thanks to the many active SOTA chasers today. Well done, Colin.

Before the turn of the millennium, i.e., before SOTA, WWFF, POTA, … and Smartphones, something like this wasn’t so easy to achieve with crystal-controlled transmitters, hi.

It might also be worth mentioning that:

  • the Spaceweather was excellent at the time of activation
  • the core loss of the EFHW transformer used is ~1.9 dB (efficiency ~64%)
  • the antenna mismatch loss on the real EFHW is unknown (VSWR?)
2 Likes
5

Well done. Frankly, I thought you would take much longer to work so many stations with just 330mW. Dunno what propagation condx were like yesterday. It would be interesting to see if you repeat that success on other activations. I wonder if 20m is better suited to QRPp than say 30m or 40m.

6

Hi Colin,

Thanks for a much enjoyable story. Now you’ve got another special Rockmite for your shelf.

Beating all records in weight reduction with a minimalist 150 gram whole gear , now you can consider bringing it to higher summits without an effort!

Well done, and thanks for the QSO (peaking 589 rst) a few minutes before in 14.063, I guess not using this tiny version right now…?

Cheers, 73 Iggy

2 Likes
7

1000046211
10000462111920×1081 265 KB

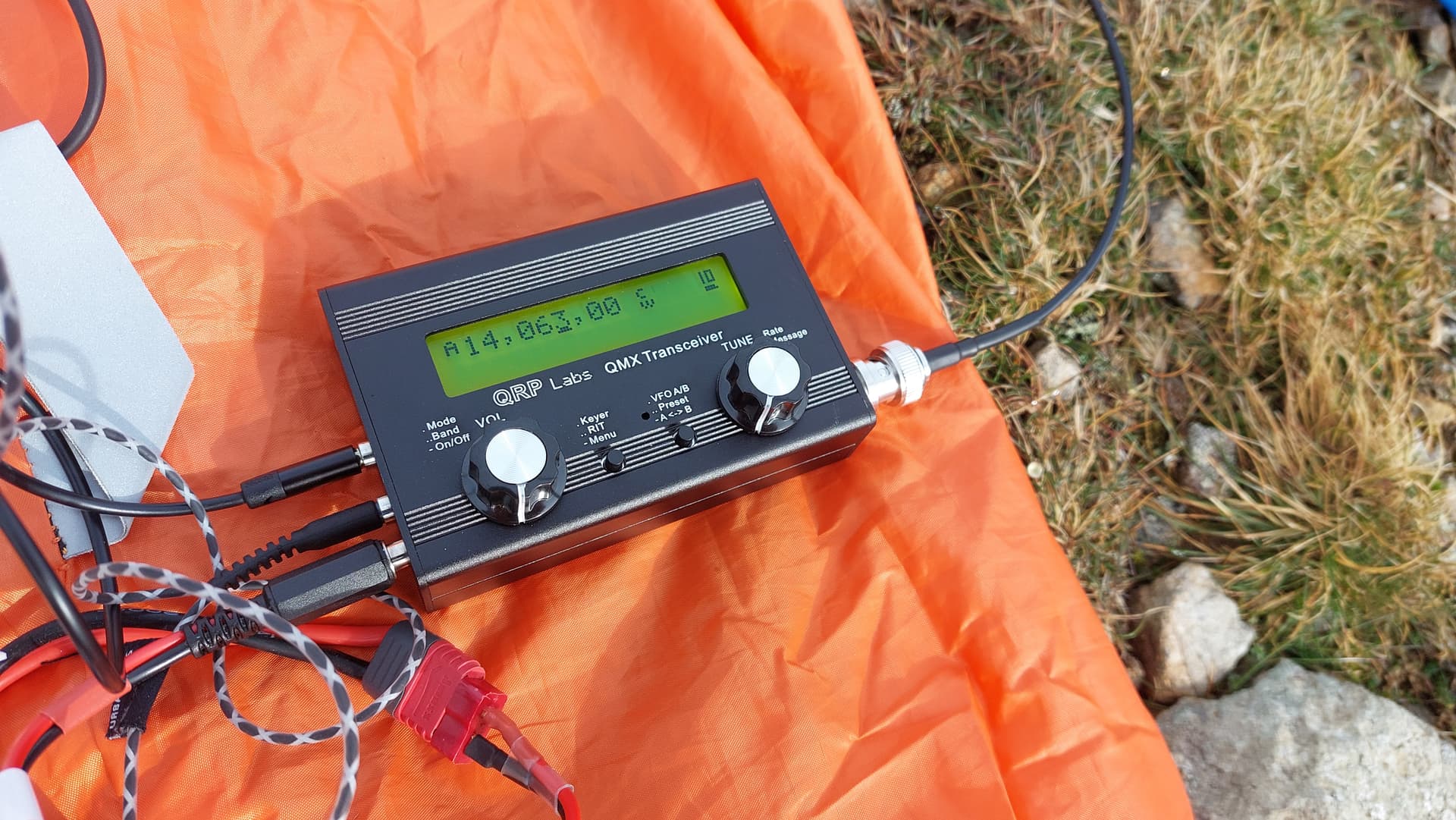

QMX :slight_smile:
