"compromise antenna" homebrew whip

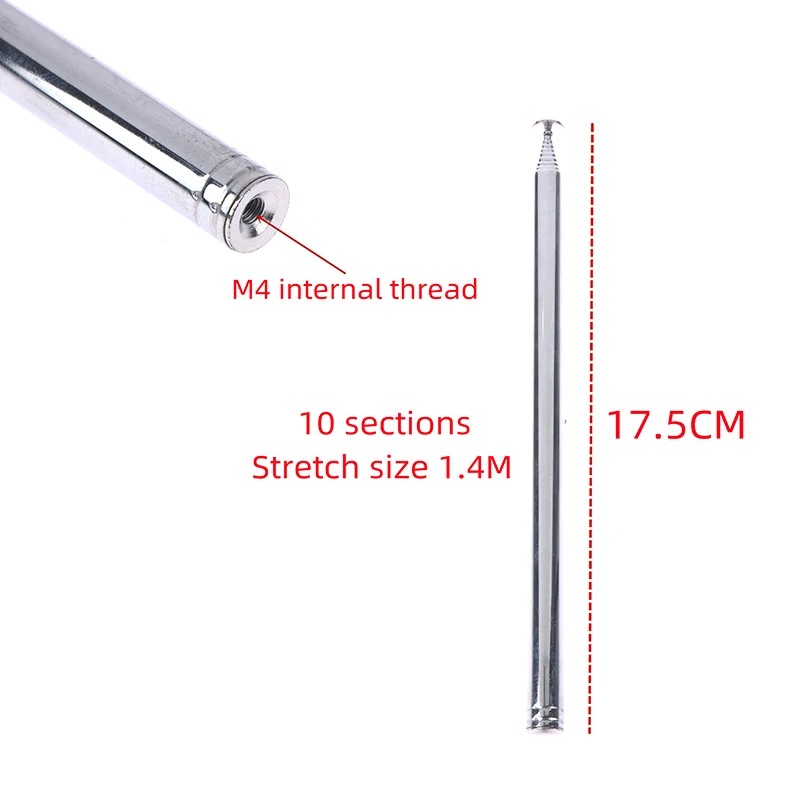

in the last times the telescopic whip antennas appear on the summits, The possiblility of make contacts with a 1.4 meters long antenna and without deploying a mast and 20 meters of wire is interesant, of course.

I own from long time ago a MFJ 1840T that never use until this new 25 cicle, with correct results. Then I use too a 27mhz whip BNC for 28 mhz with a lot of transatlantic QSOs, incredible!

I am looking for another with for 14mhz but I don´t want to pay something like Elecraft AX1, sorry…

We arrived at this point to build a prototype od 14mhz whip BNC for my FT-818.

The total ammount of this proyect is below than 5-6 euros.

the first test indor seems amazing, no SWR with counterwise totally deployed and recieved a CT1 station with 9+ signal…

Tomorrw I try to make the first sota of the year with it and later I will post the experience.


I have been experimenting with short HF dipoles for use in high altitude WSPR balloons in the last few weeks.

The image shows two coils each at the base of 1m of wire “whip”. This one was for 10m but I also made one for 20m. The coils just had more turns. This is just an experimental rig, the final one will be much more compact.

The 10m version was heard in Tenerife with just 9mW of power from the transmitter. Distance approximately 2500Km with the antenna 5m off the ground.

The 20m version was heard by more stations but only up to 1000Km, shown in the WSPRnet screenshot.

I’m still working on the design but these short antenna do work.

1 Like

Great design and building, as always!!

For sure this antena will give you many satisfactions.

73 and HNY!!



Hpy NW yr dr Javi!!


28 qsos, nice.


Here is my version

As good as a MFJ1820T or AX-1


May the be ew Year bring you more antennas

Pls remember the 12ft counterpoise


Today I made another coil for 15m.


Another one for 17m…hihi
