HELP! Looking for components TRS Pins Plugs

Equipment
1

This is a bit of a longshot! I am trying to build an FT8 sound adapter for the (tr)uSDX I have had the PCBs, made but need two of these.

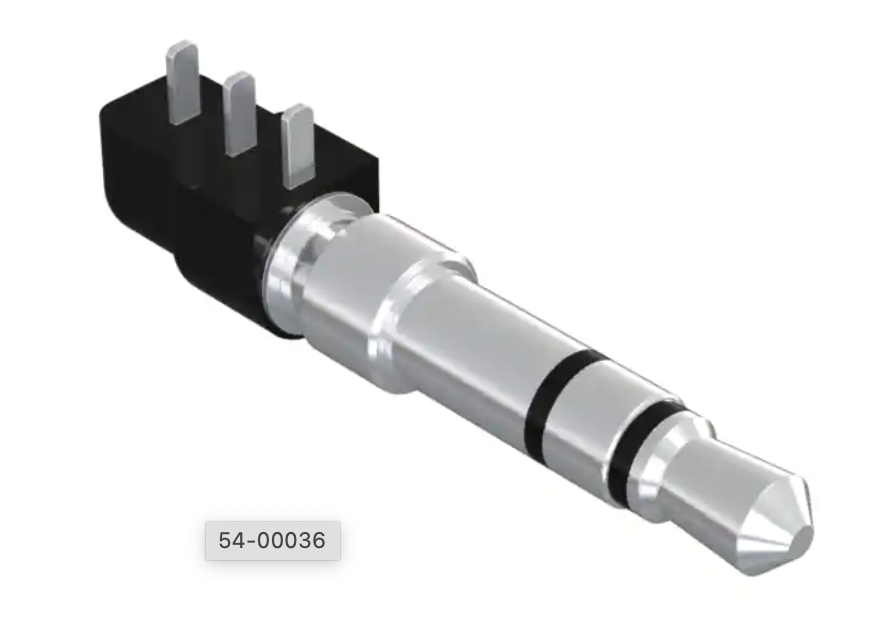

Screenshot 2022-10-29 at 12.42.25
Screenshot 2022-10-29 at 12.42.25880×638 126 KB

They can be found here https://www.digikey.co.uk/en/products/detail/tensility-international-corp/54-00036/5609421

The big problem is there seems to be a world wide shortage of them! If anyone has any, could I buy a couple from you?

On a side note I ordered 5 PCBs and was sent 20! so if anyone needs one let me know. Details of the project can be found here OSH Park ~

Cheers

Martin (UK based).

1 Like
2

Martin,
It won’t be as neat but you could try a PCB mount socket (if it fits on the PCB), then a short male-male patch cable?

2 Likes
3

Will this one fit?
https://www.digikey.co.uk/en/products/detail/cui-devices/SP-3533-02/9486641

1 Like
4

Peter

That does look very close, it just seems to have a shoulder at the top. I went to order 2 but they want $18 shipping, no UK stock! Plus duties.

73 Martin

1 Like
5

Only £12 delivery with Mouser:

Octopart lists some other alternatives:
https://octopart.com/search?q=SP-3533-02

You could also see if CUI will send you a couple of samples?
https://www.cuidevices.com/product/interconnect/connectors/audio-connectors/audio-plugs/sp-3533-02

1 Like
6

Peter

Thanks! That’s a bit better. I have ordered 4.

Hopefully I can join you and Tom soon on FT8… Watch this space.

Martin

1 Like
