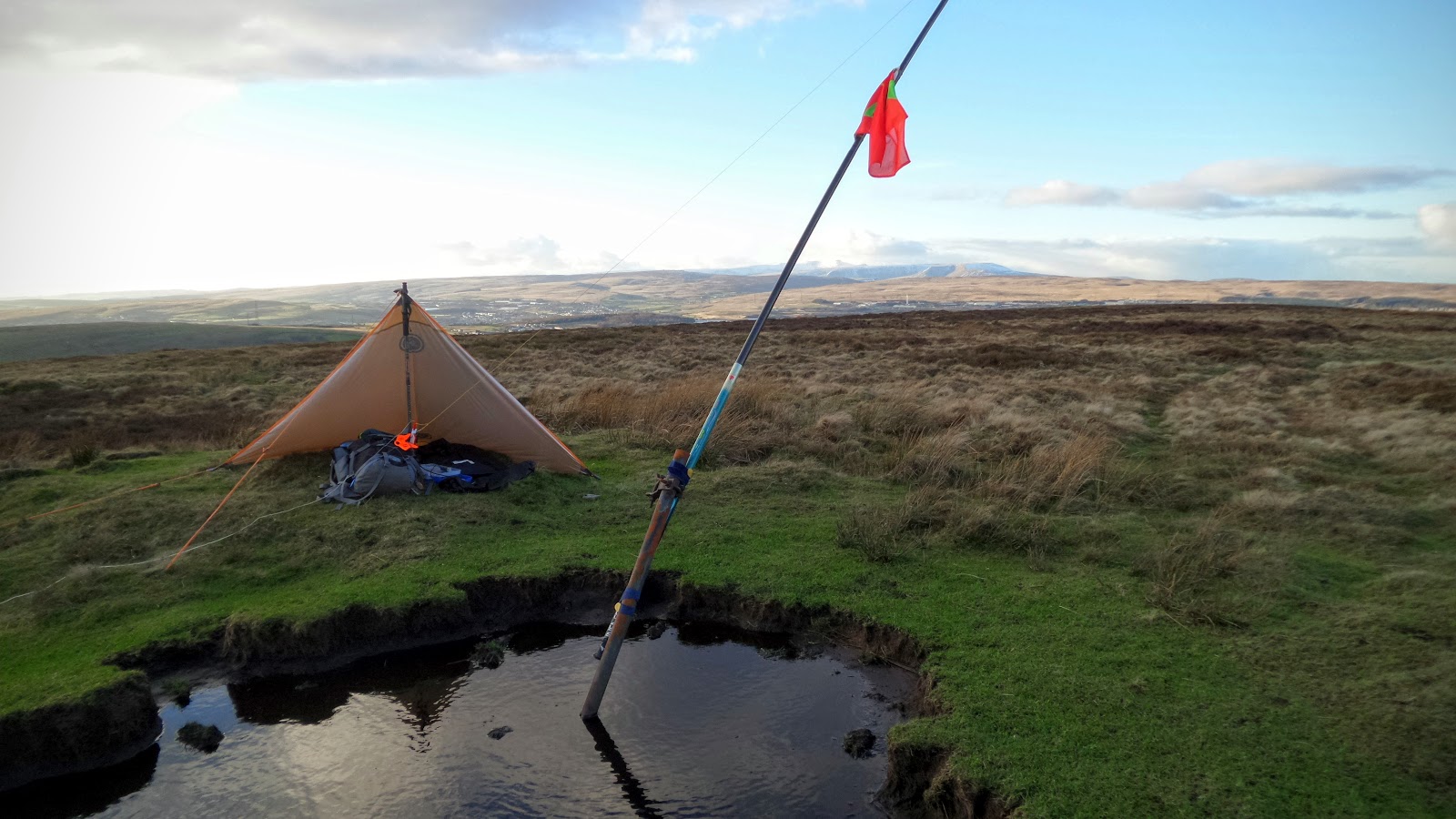

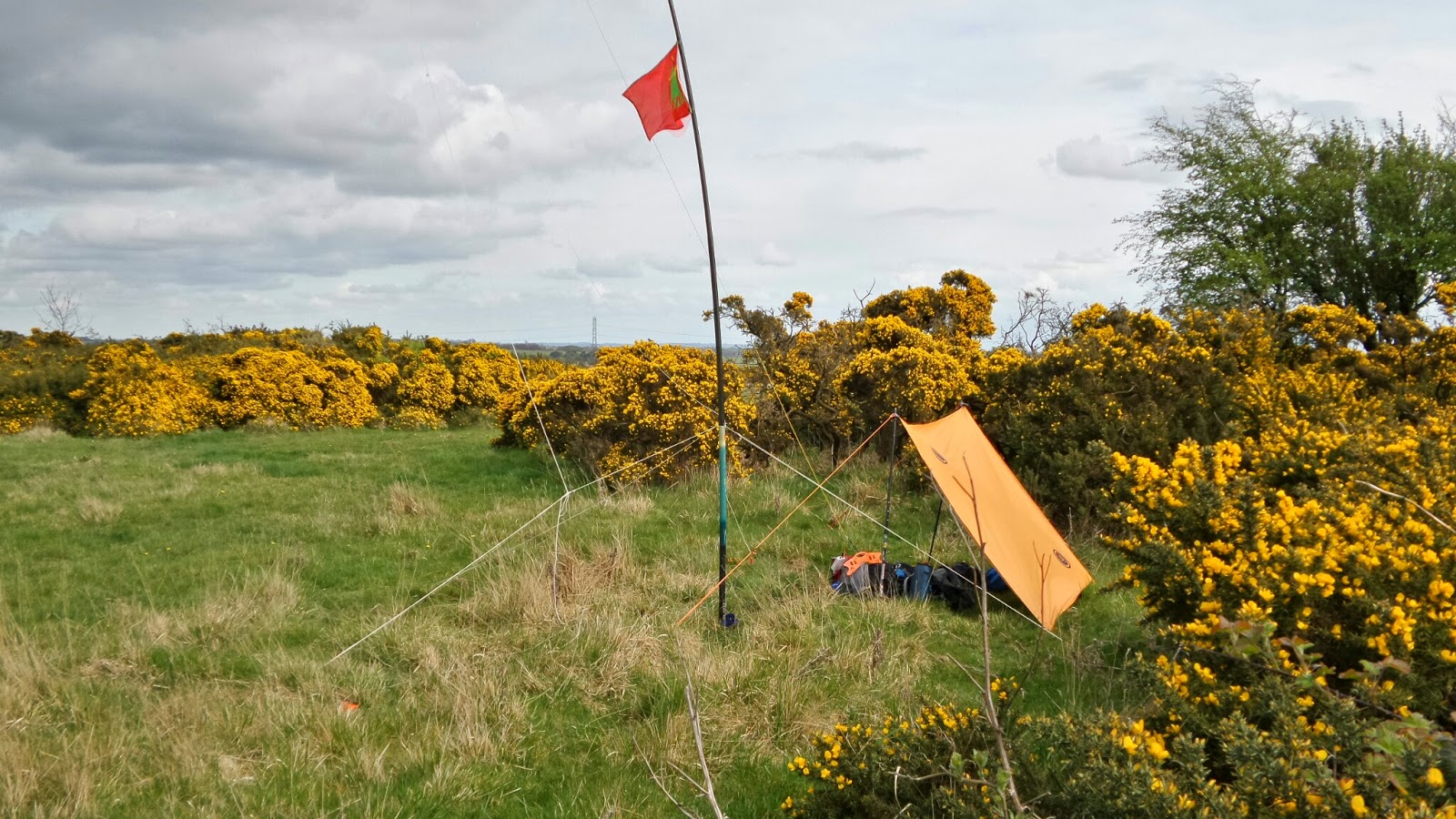

That shelter (half Tee-Pee) looks interesting, where did you find it?
73, Colin G8TMV
That shelter (half Tee-Pee) looks interesting, where did you find it?
73, Colin G8TMV
Colin it’s the little UST Tarp.
It’s been discussed here before.
I am finally putting together a short video about it.
Hopefully it will be available in a couple of days (if I can find some time to edit it)
Here are the previous answers:
Ready to go for next weekend at approx 960grs…
Setup
MTR2 v2 30-20-17m
4 band EFHW
5m pole
1000mAh 3S lipo
System budget
battery + lead 126gr
radio 122gr
iHeadphones 12gr
notebook+pen 20gr
key 58gr
pole 370gr
tuner 80gr
4 band linked EFHW + winder 154gr
pole velcro straps 20gr E
Some further savings possible if I leave the 40m wire element out and were to optimised other bits…
73 Angel
Hi Pete,
just found on youtube your nice evening flight video with your new Hubsan.
Now eagerly waiting for your next SOTA activation video, filmed from a bird’s eye view
73 Stephan, DM1LE
Just been in to my local Lidl store and purchased two stunt kites at £3.99 each, good value surprisingly as it comes with 50m high quality kite string with winders. May be also of interest to anyone else building an antenna, the second kite is for the kids.
73
Graeme
Angel, Since I have worked hard for several years to get the weight of my HF system down, I wanted to toss out a comparison to what you are doing (which is very very good!)
Set up:
MTR2 v3
5M pole
350 mAH 3S liPO
System weight…
feedline none
battery 40g
earbuds 12g
pen/log 8g
radio 122g
paddle 18g
tuner 12g
5M pole 210g
pole velcro none
20/30/40 ant 72g
TOTAL 494g
I like to think of my system as “Ultra-Lyte.” The heaviest item is the pack itself. I have a very light runners’ pack, itself just ten ounces, and I use that when I need to carry water. If the trek is less than two or three hours round trip, and weather is not too hot, I can carry my set-up in my pockets and forget the pack as well.
73, Fred KT5X (aka WS0TA)
12gr??? DIY?
Im adding up my weights lately and my KX3 setup +etc is 2.1kg (can go down to 1.8k but not less I think)
Hi all,
is it including the shelter, water, fire and food?
Are somewhere complete rules please? .pdf? Tnx Petr OK1RP
Hello Peter,
this thread refers to an invitation of setting reduced gear with minimal equipment (only radio related, excluded cloths, shelter, water, etc).
Many people contributed with great ideas about how to prepare such a minimalist setup.
Due to the interest we prepared an Event held on 17-19 June 2016.
You can see details of it in this other thread:
There is no other challenge planned yet for the future, but if there is interest we can do it again…
What do you think gents?
VY 73 de Ignacio
Yes! I’m interested. I’m working on learning CW, but until then, I’m figuring out ways to fit the FT-817 and EFHW into my running pack. Ha!
73 de Rex
I have purchased a MTR3B with the intention of doing some lightweight activations. Not specifically to participate in this event but I will follow it with interest.
73 Andrew VK1DA VK2UH
Sounds great I would be interested in participating in the challenge, if I am free from work I may be try for an overnight stay.
73
Graeme
I’m interested too!
Dear all:
Ever since I’ve started being a ham (last year, hi), I have been trying to work on a light and quick-to-setup station, because I do not have a real station at my QTH and do most of my QSOs as /P. I started with an FT-817, which is a nice radio but it’s power consumption and weight limit portability.
I have been doing mountaineering in summer and winter for ages, and for longer hikes and skitouring trips, there is very limited space and weight left in the backpack for ham radio gear; I mean, it does not make sense to have super-light harnesses and ropes etc. if I have to carry a 65l back-back for my ham gear, hi.
I quickly came to the conclusion that CW is the way to go, and started learning CW about a year ago.
My goals for an ideal station are the following:
So here is my current station, inspired by the GoBox concept by Tom, OE2ATN, see https://www.oe2atn.at/tom/kx2-gobox-2016/:
All components are mounted on a front panel designed as a 3D print part. I will later replace that by a laser-cut aluminum one but wanted to test the concept first.
The front panel includes a few metal washers so that a Palm Pico Single key can be mounted in various angles via its magnets and can be retracted during transport.
The charging of the NimH batteries is done by an external plug-in power supply (https://www.amazon.de/dp/B016WEOMN8/) that supports 1 A current and includes all circuitry for intelligent charging.
For longer activations, external batteries can be plugged in via the same DC connector.
I am very, very happy with this setup. I can be QRV within 15 seconds + antenna set-up; you cannot loose any part, and the complete station without antenna is just 559 grams. The batteries allow for many hours of operation.
As an antenna, I use the trapped 3-band EFHW design by Heinz. HB9BCB (Trap EFHW and Coupler and https://hb9sota.ch/wp-content/uploads/2016/12/Slim-EFHW-Koppler.pdf). The antenna is ca. 16m long and can be used as an inverted L, inverted vee, sloper, and horizontal with very good performance (spots in VE and USA with 5 W are common). When there are no trees etc., I use the 6m mast from Lambdahalbe.
So my total station is
Rig with battery, paddle, case, earphone, SWR meter etc: 559 g
Antenna with winder and EFHW matching unit: 131 g
Golf ball + fishing line for trees: Lees than 100 g
Optional: Mast: 650g
With the mast, one is slightly over the 1k limit, of course.
I plan to document the whole project once I have finalized it, but this will take a while.
The only things I am missing in this setup is a VFO knob (I am considering to add one to the MTR3B by combining a rotary encoder with an ATtiny; other have done this already), and maybe a direct frequency display (by intercepting the frequency values sent from the uC to the DDS inside the MTR). I was also thinking of adding a simple zero beat indicator. But then again you could also simply take an Elecraft KX2, hi.
73 de Martin, DK3IT
Hello Martin,
I am not a CW person ( I have tried and got some chaser points) but it is not for me.
Well done on your research and the activation pack looks great.
Good luck and best wishes.
Mike
Hi all,
after following this thread for a while, I also succeeded in the 1 Kilo challenge.
Thanks to all contributors for the nice suggestions.
In the meantime, all the relevant parts of the station below can be bought.
So I have to admit that no homebrewing was required.
Here comes my station, with about 850g:
Rig is the well-known MTR-3B
Antenna is a trapped EFHW for 20/30/40m. A ready-to-use version is avaible at hamshop in CZ
Battery is a 3s Lipo with 900 mAh. It is directly used, and of course may only be loaded up to 12V
The paddle is from Jan, OK1QO. The golden cover contains a small keyer (not used with the MTR)
Fishing pole is a 4m Caperlan (not on the picture. Instead, the photo contains a 6m mast)
Paper box: Well, for sure, this is a temporary solution, which will be replaced soon
And the best thing: One week ago, I did the first activation on “Grosser Laber” (DL/AM-093).
It really was fun to work with such a small radio!
73 de Robert. DL4ROB
Well done Robert,
make sure you bring your cardboard box up a summit only on sunny days…
… or buy a cheap plastic tupper and there you have an easy watertight container
I also hold the MTR-3 with rubber bands. 73 de Ignacio
Working hard to reduce the weight, the key is the RTX: FT817 is too heavy but I don’t know better SSB RTX at the same price with lesser weight.
